Description

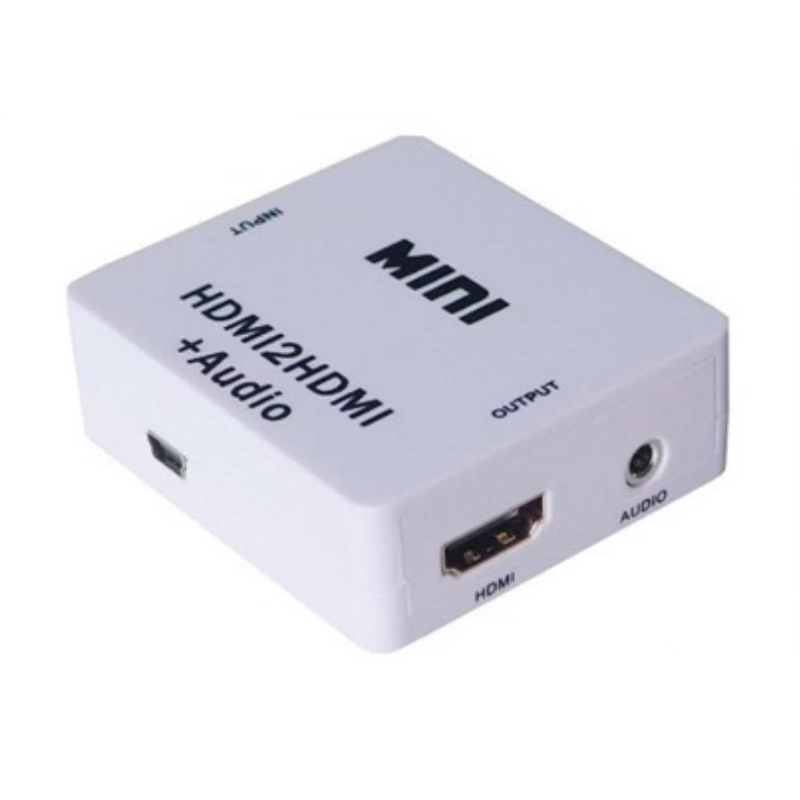

Type: HDMI Audio Extractor 4K@30Hz 3D
Color: White
Overview:
This is a high-performance, multi-functional HD audio extractor, this extractor can extract
the audio signal among the HDMI signal to the power amplifier system to obtain high-quality
audio effects which is hard for TV speaker to achieve.
Features:

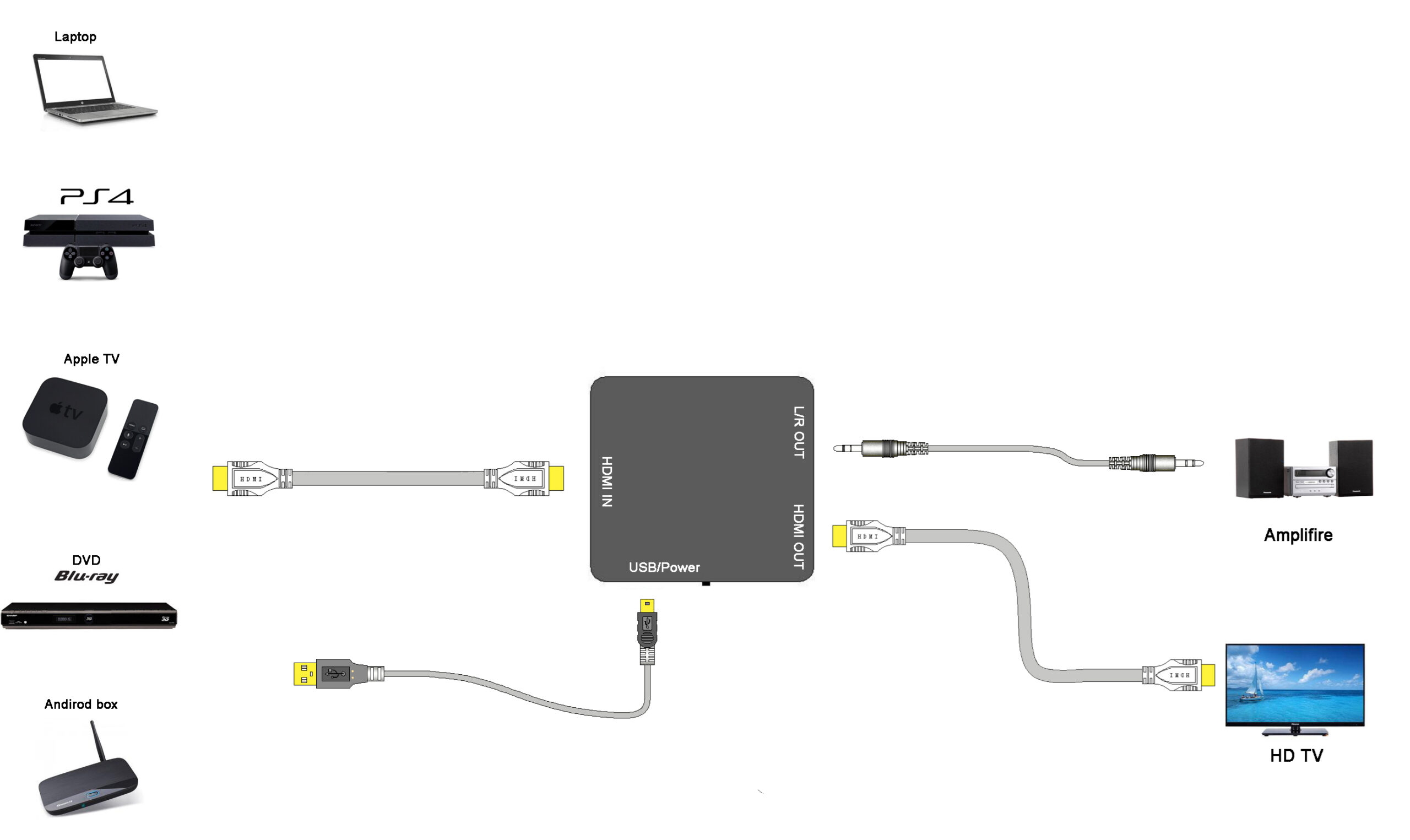

- Convert one HDMI input to one HDMI and one R/L analog audio output.
- Support digital audio format, DTS-HD/Dolby-True HD/AC3/DTS/DSD
- Audio output supports: R/L analog Audio Output.
- Input Resolution: Up to 3840×2160@30Hz/4096×2160@30Hz.
- It can realize synchronous separation of the audio signal.
Specifications:
HDCP Version: HDCP1.4
HDMI Version: HDMI1.4b
HDMI resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format: 24bits/deep color 30bit,36bit
Audio output: L/R Analog audio
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input/ Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal: 5Volts p-p(TTL)
Input cable distance: <=7m AWG26 standard cable HDMI
Output cable distance: <=8m AWG26 standard cable HDMI
Max working current: 500mA
Operating temperature range: (-15 to +55°C)
Operating humidity range: 5 to 90% RH(NO Condensation)
Dimension (LxWxH): 60x55x20(mm)
Weight: 35g
Package Contents:
1pcs – Extractor
1pcs – 5V USB Power Cable
User Manual
