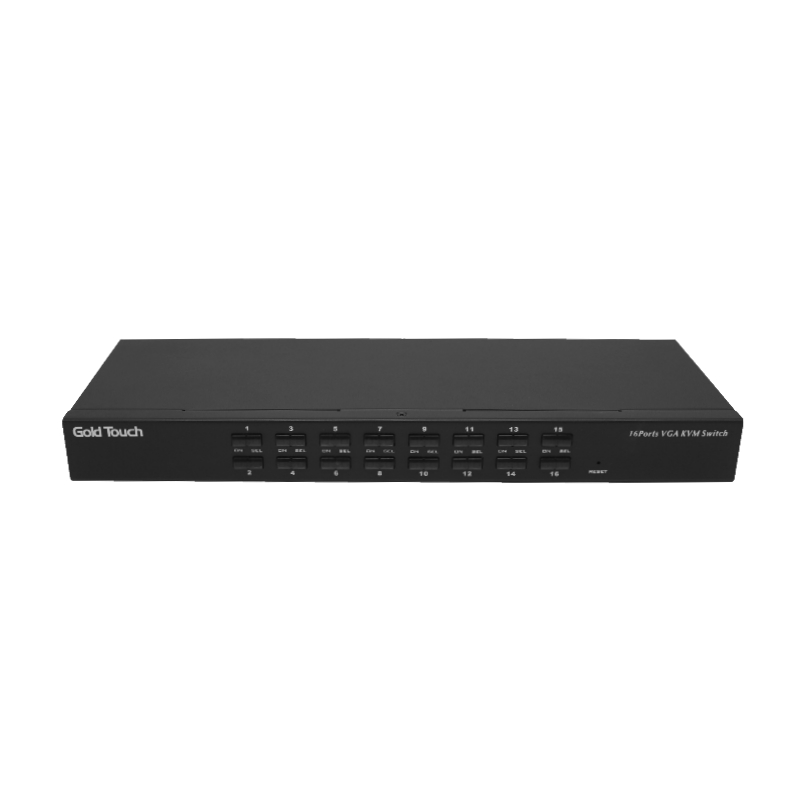

16Ports VGA KVM Switch

Description

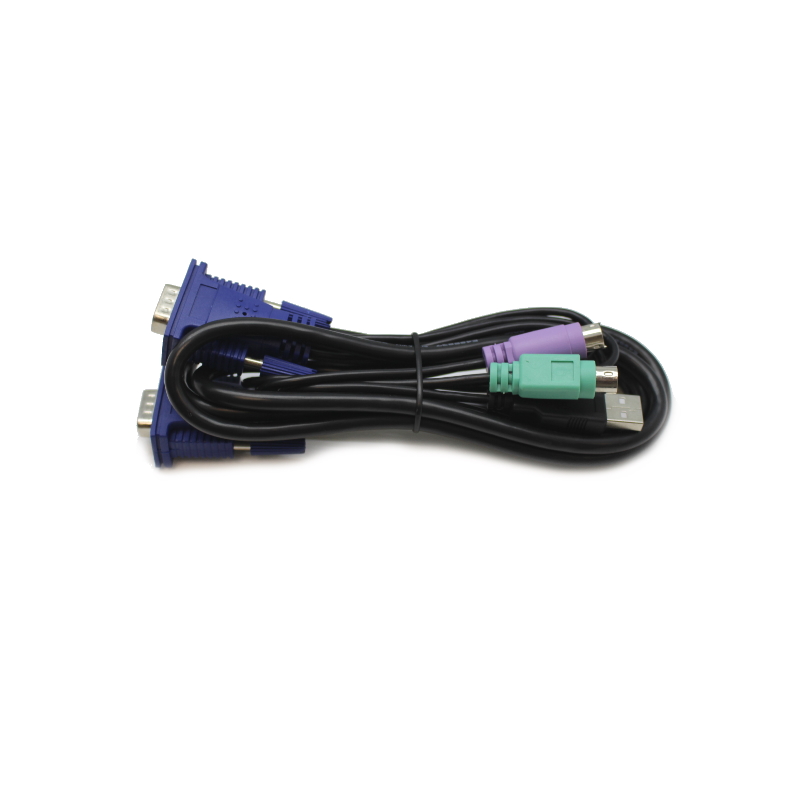

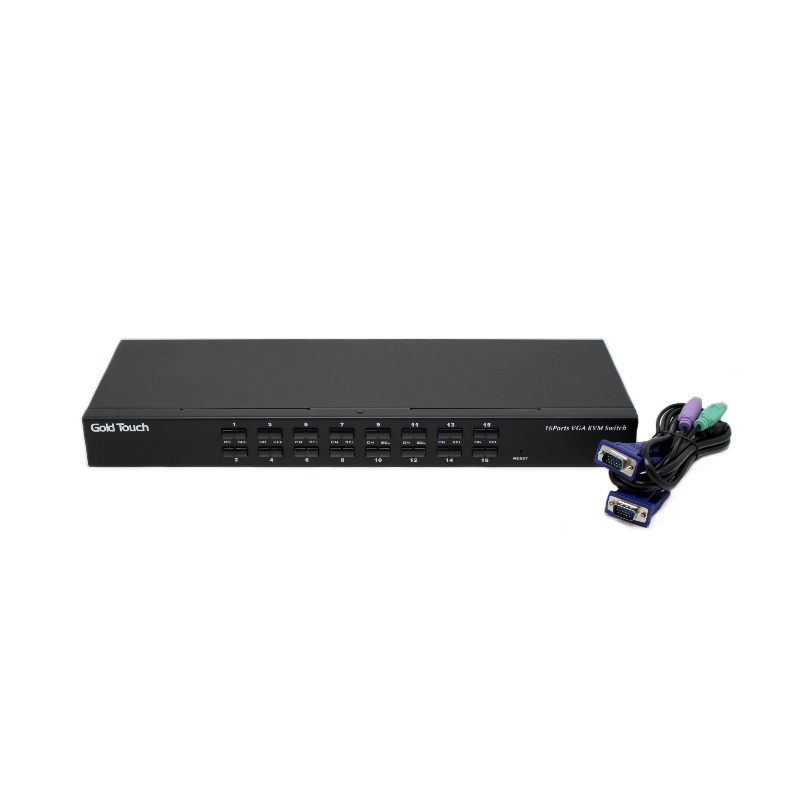

Type: 16 Ports VGA KVM Switch with cables

Color: Black

Overview:

The KVM-VGA-16, USB / PS/2 KVM (Keyboard, Video, Mouse) Switches are control units that allow access and
control of up to 16 computers from a single USB / PS/2 keyboard, USB / PS/2 mouse, and monitor console.

One console controls 16 computers
Be compatible with USB / PS/2 keyboard and mouse in console and PS/2, USB keyboard and mouse in computer
Computer selection via front panel switches and OSD
LEDs display for easy status monitoring
Auto Scan Mode for monitoring all computers
Superior video quality
Easy installation – no software required
Hot pluggable – add or remove computers for maintenance without powering down the switch
Support cross-platform operation – Windows, Linux, Mac * and Sun *

Specification:

Function			16 port
Model			KVM-VGA-16
Computer Connections	Direct		16
	Cascade(Max)		128
CPU Port Selection			OSD Menu, Front Panel Hot-Key, Hot-key, Remote Control IP (Optional)

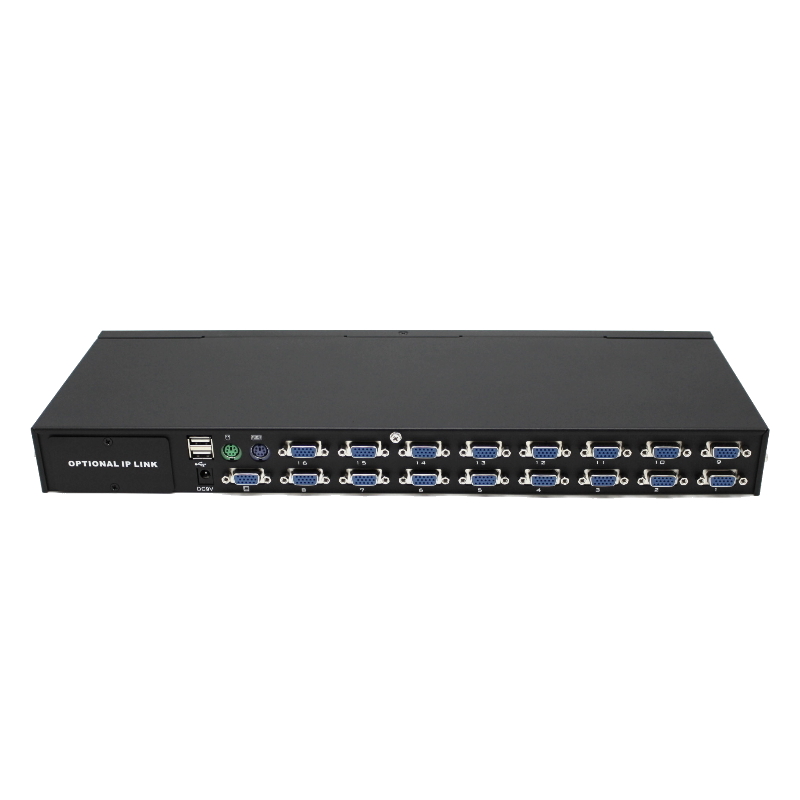

Connector	Console Connectors	Video	1 x VGA DB15 Female Blue
		Keyboard	1 x USB Type A Female, 1 x PS2 Female (Purple)
		Mouse	1 x USB Type A Female, 1 x PS2 Female (Green)
	Computer Connectors	Video/Keyboard/Mouse	16 x VGA DB15 Female (Blue)
	Power		1 x DC
	IP Module Network Interface		1 x RJ45
Key Switch	Connection Port Selection		16 x Button
	KVM Reset		1 x Semi-embedded keys
	IP Module Reset		1 x Semi-embedded keys
	IP Module Default		1 x Semi-embedded keys
LEDs	Computer Selection Port		16 x Green
	On Line		16 x Red
	IP Module Network Interface		1 x Green, 1 x Orange
Analog Mode	Keyboard, Mouse		USB, PS2
Video resolution (Max)			1920 x 1200 @ 60HZ Local & Remote
Scan time interval			3, 5, 10, 15, 20, 30, 40, 60s (3s by default)
Operating Environment	Operating temperature		-10˚C~50˚C
	Storage temperature		-20˚C~60˚C
	Humidity		0-80%RH, No Condensation
Physical Properties	Housing		Metal
	Size		mm
	Weight		KG
